THE FUNCTION OF SLIP RINGS

Slip rings are electromechanical components, providing a method of transmitting electrical signals and power across a rotating interface. Typical applications include radar, tracking antennas, gryo-rate-tables, centrifuges, industrial and medical equipment, airborne gyrostabilized camera systems, pan and tilt camera systems, manufacturing machinery, and special instrumentation systems, such as strain gauge and thermocouple circuits.

CAPABILITIES

Founded in 1960, Fabricast has extensive experience in slip ring and brush block design and manufacturing. We utilize the latest CNC machinery and CAD/CAM technology to design and manufacture cylindrical slip rings including self contained and separate rotor & brush block slip rings. Our techniques allow maximum design flexibility coupled with reliability, performance and fast delivery.

STOCK SLIP RINGS
Type 0908 P/N 0908-4BR-FAG180 pictured.
Type 0908 P/N 0908-2BR-FAG180 end view pictured.
Type 0908 P/N 0908-2BR-FAG180 side view pictured.

The complete line of Fabricast’s “BEST COST & DELIVERY” slip rings are defined on the Stock Slip Rings website pages. These assemblies are stocked in only the most common configurations. Components are stocked so that optional configurations can be provided with rapid deliveries.

Type 0984 P/N 0984-4BR-FAG180 pictured without cover.
Type 0984 P/N 0984-4BR-FAG180 pictured with cover.
Type 09816 P/N 09816-2BR-FAG180 pictured without cover.

On our stock slip ring units, we utilize coin silver rings and silver graphite brushes due to their high reliability, long life, and low noise qualities.

CUSTOM DESIGNS

Although Fabricast places considerable emphasis on its line of stock slip rings, there have always been and will continue to be many applications which require custom slip rings.

Since Fabricast was founded in 1960, a portion of our business has always been the design and manufacture of high quality custom slip rings. Because many custom slip rings are designed around standard tooling you will find our cost and delivery extremely competitive. We can be contacted by phone, fax, E-mail or by using either of the two forms included in the website (Request For More Information or Request For Quote form).

Type 2237 P/N 2237-1.50-16-20U pictured.

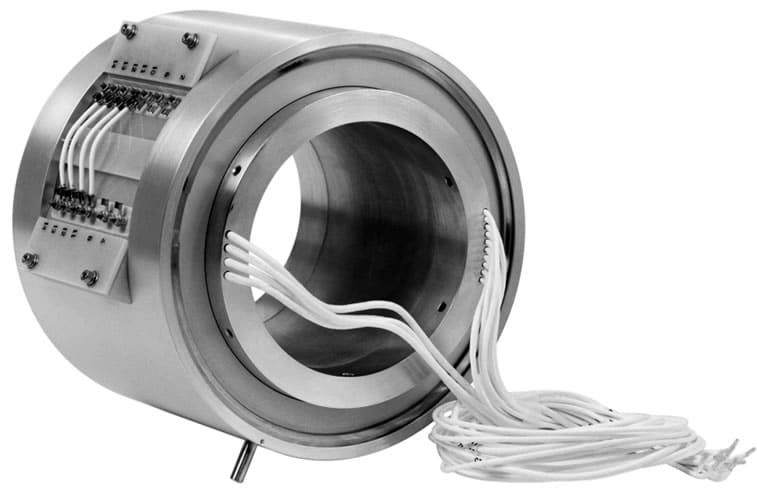

Type 1901-4.727-14-6S

INVITATION
Whether you want to order a standard slip ring assembly or receive a proposal on a custom design, contact Fabricast for immediate assistance. Be assured of our interest.
