Type 2984
P/N 2984-2BR-FAG180 pictured with and without cover.
Type 2986
P/N 2986-2BR-FAG180 pictured with and without cover.
Type 2984RC
P/N 2984RC-2BR-FAG180 pictured with and without cover.
Type 2986RC
P/N 2986RC-2BR-FAG180 pictured with and without cover.
3D models available upon request
CHARACTERISTICS |
|
| Current: | 5 amp standard. |
| 10 amp optional. | |
| Voltage: | Up to 60 volts standard. |
| Up to 1000 volts optional. (easily modified by increased ring to ring spacing upon request) | |
| Rings: | Solid Coin Silver Rings |
| Brushes: | Silver Graphite. |
| Fabricast Grade FAG180 (80%AG-20%C). | |
| 5 amp capacity with 2 brushes per ring (1 brush block). | |
| 10 amp capacity with 4 brushes per ring (2 brush blocks). | |
| Brush complement molded as unit with diallyl phthalate dielectric. | |
| Noise: | 10 Milliohms dynamic resistance maximum with 2 brushes per ring. |
| 5 Milliohms dynamic resistance maximum with 4 brushes per ring. | |
| Hi-Pot: | 1000 VAC for 15 seconds. |
| Rotor: | One piece aluminum sleeve. |
| Ring complement molded as unit with diallyl phthalate dielectric. | |
| Rotor Leads: | 5 amp leads – 20 AWG per MIL-W-16878 Type “E”. |
| 10 amp leads – 16 AWG per MIL-W-16878 Type “E”. | |
| Options: | 10 amp current carrying capacity. |
| Hard vacuum compatible. | |
| Consult Fabricast for all available options. | |
| Consult Fabricast for optional brush grades and their characteristics. | |
|

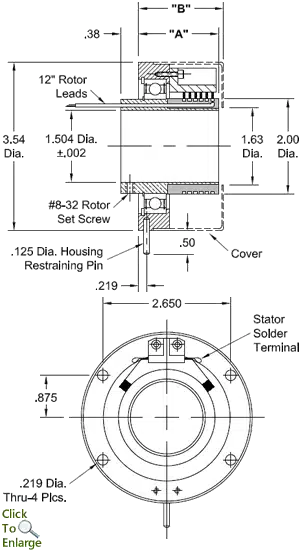

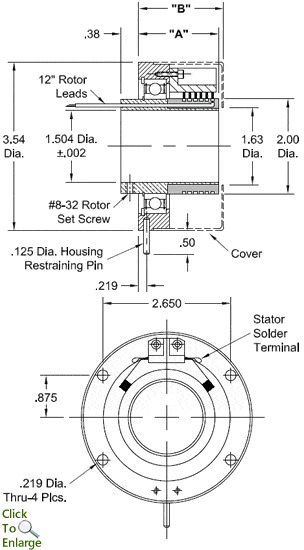

Complete Assembly |
|
